Aluminium Window Making Machinery

• Automatic
• Other, Fully Automatic

• Axial Choice
• 4-Axis

• Bar Feeder
• Other, Automatic Bar Feeder Included

• Capacity
• Single piece profile up to 6500 mm

• Color
• Other, Grey & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 7800 x 1800 x 2100 mm

• Feature
• Other, CNC System, High Efficiency, Precision Cutting & Milling

• General Use
• Milling, Drilling & Cutting of Aluminium Profiles

• Material
• Other, Suitable for Aluminium, Light Alloys

• Motor
• Other, High Precision Servo Motor

• PLC Control
• Other, Available

• Power Consumption
• 7.5 kW

• Power Source
• Electric

• Product Type
• Machine Centre for Aluminium Profile

• Rigidity
• Other, High Rigidity Structure

• Spindle Speed
• 18000 rpm

• Table Size
• 6500 mm (Length)

• Type
• Other, CNC Machining Centre

• Voltage
• 380V / 50Hz

• Weight (kg)
• 3600 kg

• Automatic
• Yes

• Axial Choice
• X,Y,Z (3 Axis)

• Bar Feeder
• Other, Optional

• Capacity
• 300 mm Milling Length

• Color
• Other, White & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 1800 x 1200 x 1650 mm

• Feature
• Other, CNC interface, precision ball screw, easy operation

• General Use
• Aluminum & PVC Profile End Milling

• Material
• Other, Steel Body, Aluminum Clamping

• Motor
• Other, 3 HP AC Motor

• PLC Control
• Other, Siemens PLC

• Power Consumption
• 3.5 kW

• Power Source
• Electric

• Product Type
• 3 Axis CNC End Milling Machine

• Rigidity
• Other, High rigidity welded steel structure

• Spindle Speed
• 12000 rpm

• Table Size
• 500 mm x 200 mm

• Type
• Other, Automatic

• Voltage
• 380V / 50Hz

• Weight (kg)
• 950

• Automatic
• Yes

• Axial Choice
• 5-axis simultaneous machining

• Bar Feeder
• No

• Capacity
• Multiple profile processing

• Color
• Other, Gray and Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 2200 x 1100 x 1750 mm

• Feature
• Other, High precision, user-friendly interface, automatic tool changer

• General Use
• Aluminum, PVC, copper, light metal end milling

• Material
• Other, Cast iron, steel & aluminum

• Motor
• Other, Servo motor

• PLC Control
• Yes

• Power Consumption
• 3.5 kW

• Power Source
• Electric

• Product Type
• CNC 5 Axis End Milling Machine

• Rigidity
• Other, High rigidity base and structure

• Spindle Speed
• 12000 rpm

• Table Size
• 350 mm

• Type
• Other, CNC Milling Machine

• Voltage
• 380V / 50Hz

• Weight (kg)
• Approx. 1250 kg

• Automatic
• Other, Fully Automatic

• Axial Choice
• Single/Double Axes Selectable

• Bar Feeder
• Other, Available

• Capacity
• Up to 6 connectors/minute

• Color
• Other, Blue & White

• Computerized
• Yes

• Dimension (L*W*H)
• 1500 x 1300 x 1400 mm

• Feature
• Other, Automatic CNC Operation, High Precision, Stable Performance

• General Use
• Aluminium/Metal Window & Door Frame Corner Cutting

• Material
• Other, Aluminium, Alloy Steel

• Motor
• Other, Precision Servo Motor

• PLC Control
• Other, Integrated Siemens PLC

• Power Consumption
• 2.2 kW

• Power Source
• Electric

• Product Type
• CNC Corner Connector Cutting Saw

• Rigidity
• Other, High Rigidity Structure

• Spindle Speed
• 2800 rpm

• Table Size
• Adequate for connector profiles

• Type
• Other, Saw Cutting Machine

• Voltage
• 380V / 50Hz

• Weight (kg)
• 480 kg

• Automatic
• Other, Semi-Automatic

• Axial Choice
• Fixed

• Bar Feeder
• Other, Manual

• Capacity
• Suitable for profiles up to 450mm

• Color
• Other, Blue & White

• Computerized
• No

• Dimension (L*W*H)
• 1650 x 1400 x 1350 mm

• Feature
• Other, High precision, Smooth cutting, Safety guard

• General Use
• Aluminum Window & Door Manufacturing

• Material
• Other, Aluminum, Alloy

• Motor
• Other, Main Motor 2.2 kW, Hydraulic Motor 0.75 kW

• PLC Control
• Other, Available

• Power Consumption
• 3.55 kW

• Power Source
• Electric

• Product Type
• Corner Connector Cutting Saw

• Rigidity
• Other, Heavy Duty Construction

• Spindle Speed
• 2800 rpm

• Table Size
• Customizable

• Type
• Other, Double Head Saw

• Voltage
• 380V/50Hz

• Weight (kg)
• 480 kg

• Automatic
• Other, Semi-Automatic/Automatic

• Axial Choice
• Horizontal

• Bar Feeder
• Other, Manual and Automatic Option

• Capacity
• Max. 120 200 mm (WH)

• Color
• Other, Blue & White

• Computerized
• Yes

• Dimension (L*W*H)
• 4500 1170 1400 mm

• Feature
• Other, Precision Cutting, Digital Display, High Efficiency

• General Use
• Aluminum Profile Cutting

• Material
• Other, Aluminum, PVC, Light Alloys

• Motor
• Other, Double Motor Drive

• PLC Control
• Yes

• Power Consumption
• 2 1.85 kW (Total 3.7 kW)

• Power Source
• Electric

• Product Type
• Double Head Cutting Saw

• Rigidity
• Other, High Structural Rigidity

• Spindle Speed
• 2800 rpm

• Table Size
• 3700 mm

• Type
• Other, Industrial Saw Machine

• Voltage
• 380V/220V, 50Hz

• Weight (kg)
• 1300 kg

• Automatic
• Yes

• Axial Choice
• Horizontal and Vertical

• Bar Feeder
• Other, Automatic

• Capacity
• Up to 120 mm height, 140 mm width cutting

• Color
• Other, Grey & Yellow

• Computerized
• Yes

• Dimension (L*W*H)
• 6000 x 1800 x 1600 mm

• Feature
• Other, Automatic cutting, High precision, Servo-controlled, Touchscreen interface

• General Use
• Aluminum Profile Cutting

• Material
• Other, Aluminum, PVC, Light alloys

• Motor
• Other, Main saw motor 2 x 2.2 kW

• PLC Control
• Yes

• Power Consumption
• 5.5 kW

• Power Source
• Electric

• Product Type
• CNC Double Head Cutting Saw

• Rigidity
• High

• Spindle Speed
• 2800 rpm

• Table Size
• Customized according to requirements

• Type
• Other, Double Head Precision Saw

• Voltage
• 380V/50Hz

• Weight (kg)
• 1800 kg

• Automatic
• Yes

• Axial Choice
• 45 / 90 (adjustable)

• Bar Feeder
• Other, Optional

• Capacity
• Heavy Duty

• Color
• Other, White and Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 5800 1450 1600 mm

• Feature
• Other, High Precision, CNC Control, Automatic Operation, Digital Display

• General Use
• Aluminium Profile Cutting

• Material
• Other, Aluminum, PVC

• Motor
• Other, 2 2.2 kW

• PLC Control
• Yes

• Power Consumption
• 4.4 kW

• Power Source
• Electric

• Product Type
• Double Head Precision Cutting Saw

• Rigidity
• High

• Spindle Speed
• 2800 rpm

• Table Size
• 4600 mm (Max. cutting length)

• Type
• Other, CNC Double Head Cutting Saw

• Voltage
• 380V / 50Hz

• Weight (kg)
• 1500 kg

• Automatic
• No

• Axial Choice
• Single Axis

• Bar Feeder
• Other, Manual

• Capacity
• Up to 100 frames/day

• Color
• Other, Blue & White

• Computerized
• No

• Dimension (L*W*H)
• 1500 mm x 850 mm x 1300 mm

• Feature
• Other, Precise and Stable Corner Joining, Easy Operation

• General Use
• Aluminum Window and Door Frame Production

• Material
• Other, Steel/Aluminum

• Motor
• Other, 2.2 kW Motor

• PLC Control
• No

• Power Consumption
• 2.2 kW

• Power Source
• Electric

• Product Type
• Corner Crimping Machine

• Rigidity
• Other, High Structural Rigidity

• Table Size
• 360 mm x 120 mm

• Type
• Other, Corner Crimping

• Voltage
• 380V / 50Hz

• Weight (kg)
• 500 kg

• Automatic
• Other, Semi Automatic

• Axial Choice
• Single Axis

• Capacity
• 180 kN (18 tons)

• Color
• Other, Industrial Blue

• Computerized
• No

• Dimension (L*W*H)
• 130012001300 mm

• Feature
• Other, Heavy Duty, Precision Crimping, Efficient Operation

• General Use
• Corner Joining/Crimping for Aluminium Window & Door Frames

• Material
• Other, High Grade Steel & Alloy Components

• Motor
• Other, 2.2 kW High-efficiency Motor

• PLC Control
• No

• Power Consumption
• 2.2 kW

• Power Source
• Electric

• Product Type

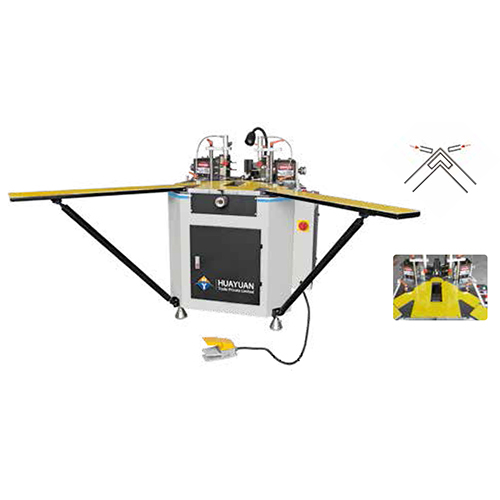

• Heavy Duty Corner Crimping Machine

• Rigidity
• Other, High Rigidity Frame

• Table Size
• 680310 mm

• Type
• Other, Mechanical Crimping Machine

• Voltage
• 380 V

• Weight (kg)
• 860 kg

• Automatic
• Yes

• Axial Choice
• Adjustable

• Bar Feeder
• No

• Capacity
• Standard profile end milling

• Color
• Other, Blue & White

• Computerized
• No

• Dimension (L*W*H)
• 1300 x 950 x 1350 mm

• Feature
• Other, Automatic feeding, precise end milling, adjustable angle

• General Use
• Aluminium and PVC profile end milling

• Material
• Other, Mild steel body, carbide cutter

• Motor
• Other, 2.2 kW efficiency motor

• PLC Control
• Yes

• Power Consumption
• 2.2 kW

• Power Source
• Electric

• Product Type
• Auto End Milling Machine

• Rigidity
• High

• Spindle Speed
• 2800 rpm

• Table Size
• 400 x 250 mm

• Type
• Other, Automatic End Milling

• Voltage
• 380V / 50Hz

• Weight (kg)
• 370 kg

• Automatic
• Yes

• Axial Choice
• X, Y, Z Axis

• Bar Feeder
• No

• Capacity
• Drill up to 25 mm, Mill up to 20 mm thickness

• Color
• Other, White & Blue

• Computerized
• Yes

• Dimension (L*W*H)
• 4100 mm x 2000 mm x 2200 mm

• Feature
• Other, Double Spindle, High Precision

• General Use
• Metal Drilling and Milling

• Material
• Other, Mild Steel, Cast Iron, Aluminium

• Motor
• Other, 2 x 3.7 kW Servo Motor

• PLC Control
• Yes

• Power Consumption
• 7.5 kW

• Power Source
• Electric

• Product Type
• CNC Double Spindle Drilling Milling Machine

• Rigidity
• Other, High Rigidity Structure

• Spindle Speed
• 6000 rpm

• Table Size
• 3000 mm x 300 mm

• Type
• Other, CNC Drilling and Milling

• Voltage
• 380V / 50Hz

• Weight (kg)
• 3200 kg
